Features

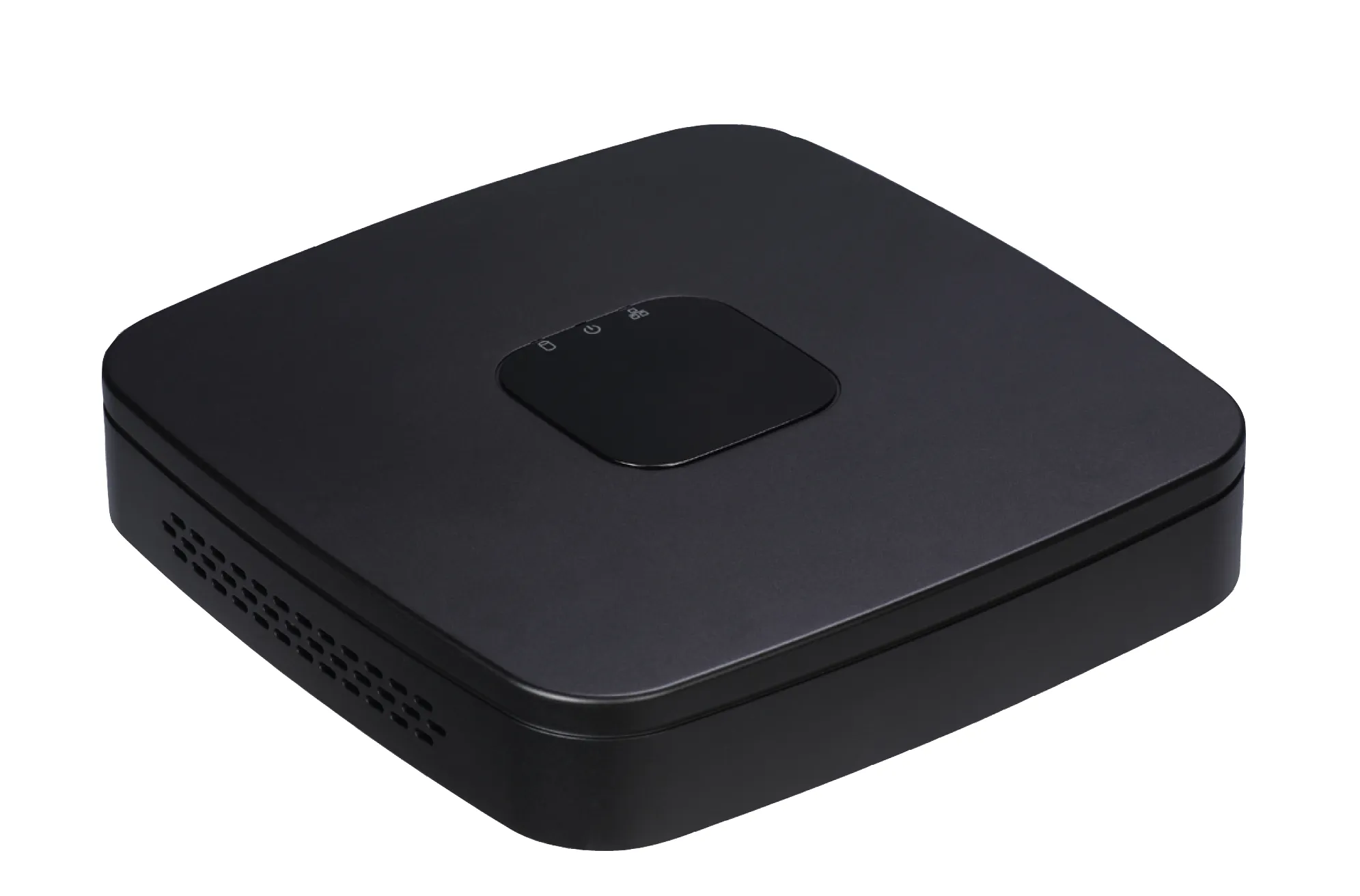

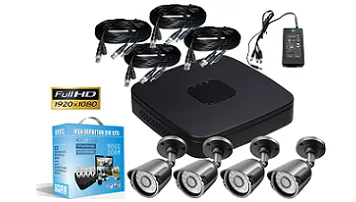

- 4CH 1080P full realtime HD-CVI camera with Smart 1U CVR kit
- 264 dual-stream video compression
- HDMI/VGA simultaneous video output
- 4CH synchronous playback, GRID interface & smart search
- Multiple network monitoring: Web viewer, CMS(DPSS/PSS) & DMSS
- 1/2.7" 2MP CMOS sensor

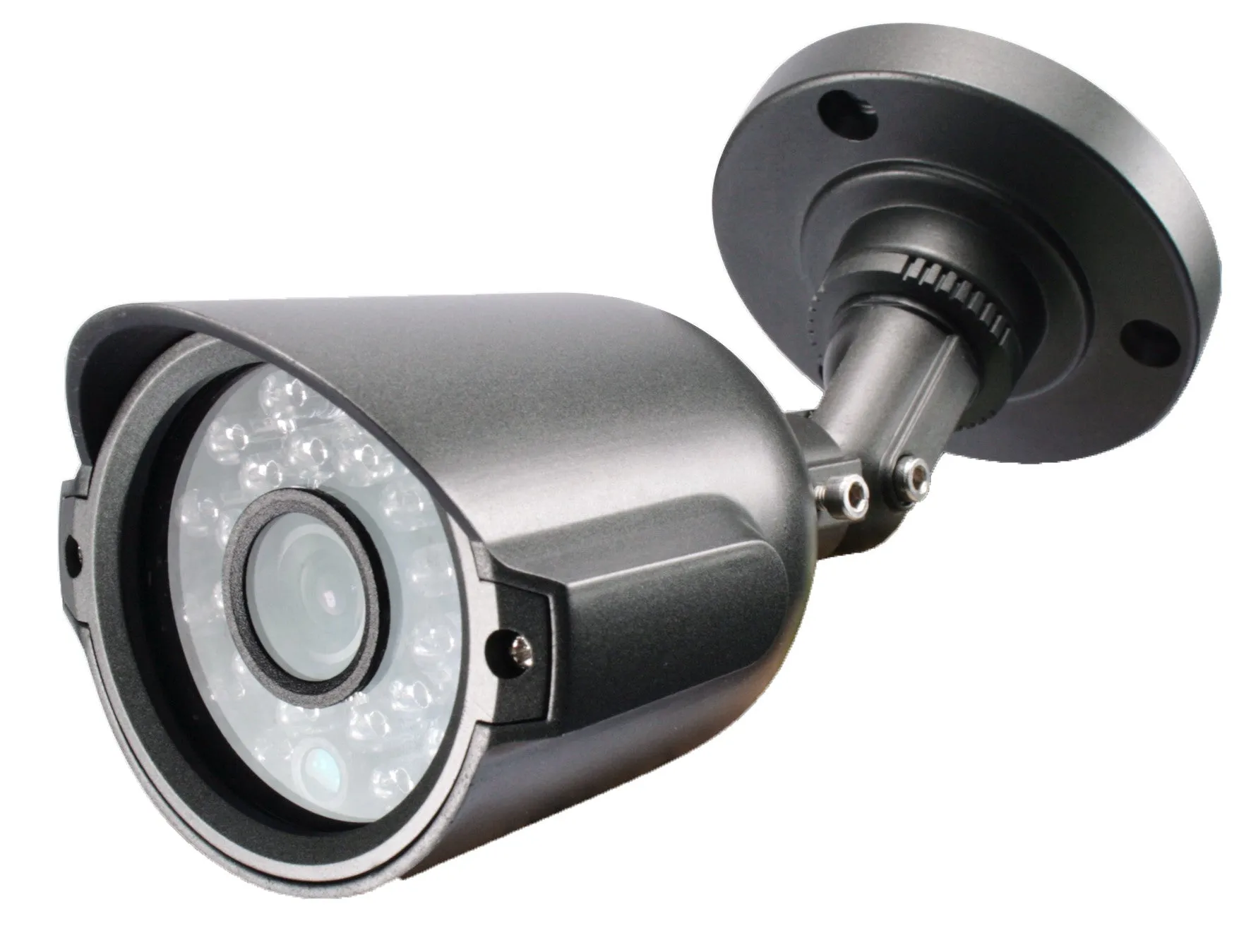

- 3.6mm fixed lens camera
- night vision up to 25 meters
- HD-CVI video output
- DC12V
- 4*15M RG59 video power cable
- 1*12V 5Amp 5-Way PSU included
Specifications
|
MODEL |
K-5104-R2980 |
|
|
CAMERA |
||
|
Model |
||
|
Pick-up Devices |
1/2.7" 2MP CMOS |
|
|
Effective Pixel |
1920(H) x 1080(V) |
|
|
Min. illumination |
0 Lux (IR ON) |
|
|
Electronic shutter |
Rolling shutter |
|
|
Day/Night |
Auto (ICR) |
|
|
Lens |
3.6mm |
|
|
IR distance |
25M |
|
|
VIDEO |
||
|
VIdeo input |
4 channel, BNC |
|
|
Video input Resolution |
HD-CVI: 1080P/720P HD-CVI Camera |
|
|
IP: 1080P/720P/D1/CIF IP Camera |
||
|
Video output |
HDMI/VGA 1920x1080, 1280x1024, 1280x720, 1024x768x 800x600 |
|
|
Image display |
1/4 |
|
|
Privacy masking |
4 rectangular zones (each camera) |
|
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
VIDEO RECORDING AND PLAYBACK |
||
|
Resolution |
1080P(1920*1080) / 720P (1280*720) / 960H(960*576) / D1 / 4CIF / QCIF |
|
|
Record rate |
|
|
|
Bit rate |
48-4096Kb/s |
|
|
Record mode |
Manual, Schedule (Regular(continuous), MD), Stop |
|
|
Record interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
Syn. playback |
1/4 |
|
|
Backup mode |
USB device/Network |
|
|
NETWORK |
||
|
Ethernet |
RJ45 (10/100M) |
|
|
Network functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|
|
Internal HDD |
1 SATA, up to 4TB |
|
|
USB interface |
2 ports, USB2.0 |
|
|
GENERAL |
|
|
|
Power supply |
DC12V 2A |
|
|
Power consumption |
10W (without HDD) |
|
|
Dimension |
270*205*40mm |
|
|
Weight |
0.75kg(without HDD) |
|
